Immunoglobulins generally assume one of two roles: immunoglobulins may act as i) plasma membrane bound antigen receptors on the surface of a B-cell or ii) as antibodies free in cellular fluids functioning to intercept and eliminate antigenic determinants. In either role, antibody function is intimately related to its structure and this page will introduce immunoglobulins (antibodies) and relate their structure to their function in host defense.

Basic Immunoglobilin Structure

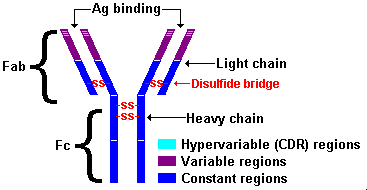

Immunoglobulins are composed of four polypeptide chains: two "light" chains (lambda or kappa), and two "heavy" chains (alpha, delta, gamma, epsilon or mu). The type of heavy chain determines the immunoglobulin isotype (IgA, IgD, IgG, IgE, IgM, respectively). Light chains are composed of 220 amino acid residues while heavy chains are composed of 440-550 amino acids. Each chain has "constant" and "variable" regions as shown in the figure. Variable regions are contained within the amino (NH2) terminal end of the polypeptide chain (amino acids 1-110). When comparing one antibody to another, these amino acid sequences are quite distinct. Constant regions, comprising amino acids 111-220 (or 440-550), are rather uniform, in comparison, from one antibody to another, within the same isotype. "Hypervariable" regions, or "Complementarity Determining Regions" (CDRs) are found within the variable regions of both the heavy and light chains. These regions serve to recognize and bind specifically to antigen. The four polypeptide chains are held together by covalent disulfide (-S-S-) bonds.

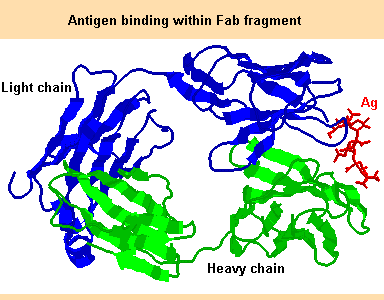

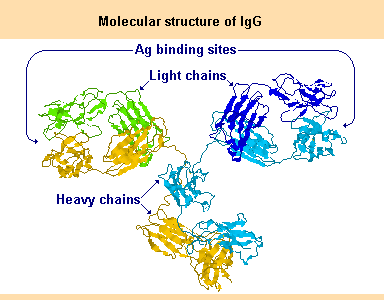

IgG2 3-Dimensional Structure, side viewIgG2 3-Dimensional Structure, Ag binding

Structural differences between immunoglobulins are used for their classification. As stated above, the type of heavy chain an immunoglobulin possesses determines the immunoglobulin "isotype". More specifically, an isotype is determined by the primary sequence of amino acids in the constant region of the heavy chain, which in turn determines the three-dimensional structure of the molecule. Since immunoglobulins are proteins, they can act as an antigen, eliciting an immune response that generates anti-immunoglobulin antibodies. However, the structural (three-dimensional) features that define isotypes are not immunogenic in an animal of the same species, since they are not seen as "foreign". For example, the five human isotypes, IgA, IgD, IgG, IgE and IgM are found in all humans and a result, injection of human IgG into another human would not generate antibodies directed against the structural features (determinants) that define the IgG isotype. However, injection of human IgG into a rabbit would generate antibodies directed against those same structural features.

Another means of classifying immunoglobulins is defined by the term "allotype". Like isotypes, allotypes are determined by the amino acid sequence and corresponding three-dimensional structure of the constant region of the immunoglobulin molecule. Unlike isotypes, allotypes reflect genetic differences between members of the same species. This means that not all members of the species will possess any particular allotype. Therefore, injection of any specific human allotype into another human could possibly generate antibodies directed against the structural features that define that particular allotypic variation.

A third means of classifying immunoglobulins is defined by the term "idiotype". Unlike isotypes and allotypes, idiotypes are determined by the amino acid sequence and corresponding three-dimensional structure of the variable region of the immunoglobulin molecule. In this regard, idiotypes reflect the antigen binding specificity of any particular antibody molecule. Idiotypes are so unique that an individual person is probably capable of generating antibodies directed against their own idiotypic determinants. This probability forms the basis of the Idiotypic Network Hypothesis to be described later.


Antibodies function in a variety of ways designed to eliminate the antigen that elicited their production. Some of these functions are independent of the particular class (isotype) of immunoglobulin. These functions reflect the antigen binding capacity of the molecule as defined by the variable and hypervariable (idiotypic) regions. For example, an antibody might bind to a toxin and prevent that toxin from entering host cells where its biological effects would be activated. Similarly, a different antibody might bind to the surface of a virus and prevent that virus from entering its host cell. In contrast, other antibody functions are dependent upon the immunoglobulin class (isotype). These functions are contained within the constant regions of the molecule. For example, only IgG and IgM antibodies have the ability to interact with and initiate the complement cascade. Likewise, only IgG molecules can bind to the surface of macrophages via Fc receptors to promote and enhance phagocytosis. The following table summarizes some immunoglobulin properties.

Isotype Structure Placental transfer Binds mast cell surfaces Binds phagocytic cell surfaces Activates complement Additional features
IgM Structure of IgM - - - + First Ab in development and response.
IgD Structure of IgD - - - - B-cell receptor.
IgG Structure of IgG + - + + Involved in opsonization and ADCC. Four subclasses; IgG1, IgG2, IgG3, IgG4.
IgE Structure of IgE - + - - Involved in allergic responses.
IgA Structure of IgA
Structure of sIgA
- - - - Two subclasses; IgA1, IgA2. Also found as dimer (sIgA) in secretions.


The immune system has the capacity to recognize and respond to about 107 different antigens. This extreme diversity can be generated in at least three possible ways:

  1. Multiple genes in the germ line DNA.
  2. Variable recombination during the differentiation of germ line cells into B-cells.
  3. Mutation during the differentiation of germ line cells into B-cells.

It is known that all three of these possibilities take place to produce antibody diversity. The following figures illustrate these possibilities:

Antibody Diversity: Multiple Genes

  1. The figure shows the genetic makeup of a germ line cell and a mature B-cell at the loci controlling heavy chain production. Germ line DNA has many (up to 200) different variable (V) region genes, in addition to 12 diversity (D) region genes and four joining (J) region genes. During differentiation of this cell into the B-cell, rearrangement of the DNA occurs. This rearrangement aligns one of the many V genes with one of the D genes and one of the J genes, producing a functional VDJ recombinant gene. Since any of the genes may recombine with any others, this rearrangement has the potential to generate 200 x 12 x 4 = 9600 different possible combinations. The same type of event occurs in the genes encoding the immmunoglobulin light chains where about 200 different V regions may recombine with about 5 different J regions giving rise to 200 x 5 = 1000 possible light chains. Since in any particular B-cell, any light chain combination can occur along with any heavy chain combination, the total possible immunoglobulin combinations approaches 107 (9600 x 1000).

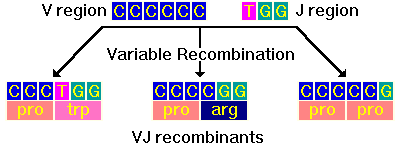

    Antibody Diversity: Variable Recombination

  2. A second way that diversity can result is through a process of variable or "inaccurate" recombination. The figure illustrates three possible recombination events between the variable (V) and joining (J) regions of an immunoglobulin light chain. In the first event, a proline-tryptophan dipeptide sequence is produced in the resulting protein. However, in the second and third events, differential recombination places proline-arginine or proline-proline sequences into the resulting immunoglobulin. These types of events may also occur between the V and D regions and the D and J regions of the heavy chain DNA sequence.

    Antibody Diversity: Somatic Mutation

  3. A third way that diversity can result is through a process of mutation. This process simply involves changes in DNA sequence that occur during differentiation of the B-cell. The figure illustrates how an A:T to G:C transition mutation could change a serine residue into a glycine residue in the resulting immunoglobulin. This process may, in part, explain the diversity observed in hypervariable (CDR) regions.


The production of immunoglobulins by B-cells or plasma cells occurs in different stages. During differentiation of the B-cells from precursor stem cells, rearrangement, recombination and mutation of the immunoglobulin V, D, and J regions occurs to produce functional VJ (light chain) and VDJ (heavy chain) genes. At this point, the antigen specificity of the mature B-cell has been determined. Each cell can make only one heavy chain and one light chain, although the isotype of the heavy chain may change. Initially, a mature B-cell will produce primarily IgD (and some membrane IgM) that will migrate to the cell surface to act as the antigen receptor. Upon stimulation by antigen, the B-cell will differentiate into a plasma cell expressing large amounts of secreted IgM. Some cells will undergo a "class switch" during which a rearrangement of the DNA will occur, placing the VDJ gene next to the genes encoding the IgG, IgE or IgA constant regions. Upon secondary induction (i.e. the secondary response), these B-cells will differentiate into plasma cells expressing the new isotype. Most commonly, this results in a switch from IgM (primary response) to IgG (secondary response). The factors that lead to production of IgE or IgA instead of IgG are not well understood.
